Description
The kit compromises of laser cut plywood parts for the main body and the frames. The axlebox details are FDM 3D printed with the couplings being a resin 3D print.
The running gear is standard Binnie wheels, with steel axles and a set of our custom CNC machined brass bearings.
Each part of the kit has been produced by a process that is optimised for that part.
The dimensions below are all maximum dimensions, so over couplings for the length and over any detailing parts on the outside for the width. The height is from the top of the rail, to the highest part of the vehicle.
Length – 175mm
Width – 90mm
Height – 66mm
Coupling Height – 25mm
Gauge – 32mm or 45mm.
The kit contains everything you need to build the wagon, including our detailed and illustrated instructions. The only thing the kit does not contain is any paints and adhesives.
As with all of our kits, this has been designed to be a straight forward kit to build, perfect for beginners. It can be built and assembled as supplied or it can be “super-detailed” to add even more realism to your model.

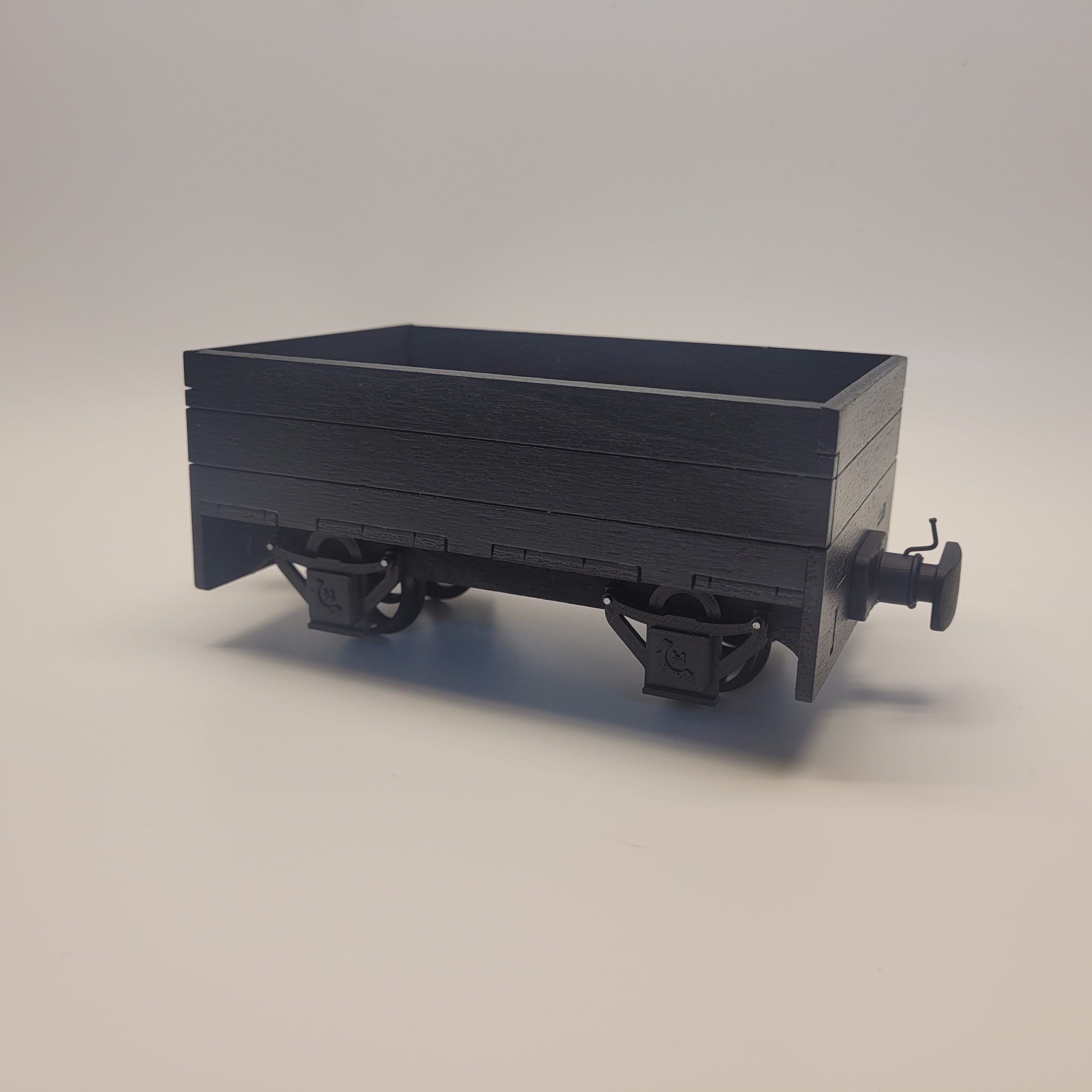

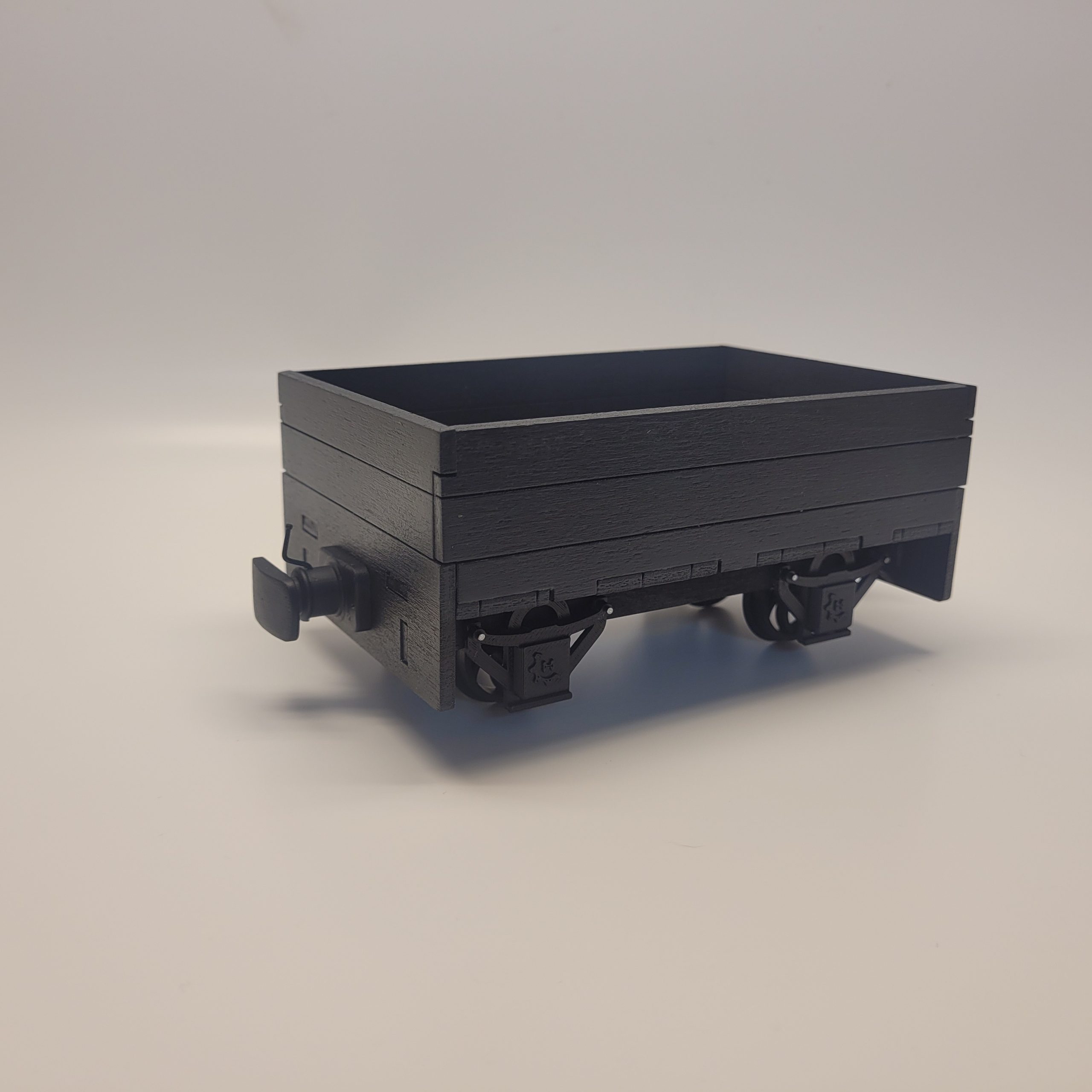

The demonstration model is painted with INRAL Anthracite Grey (Available Here), with a coat of Rustoleum Semi-Gloss Clear Coat.
